Wilhelm Gravel

The new model line

Off the Grid

To create independence in permanent dependence comes a gravel line from Wilhelm, which makes self-sufficient riding on a wide variety of surfaces a head-out moment. Wilhelm Gravel allows you to exceed the well-known urban environment and start out to bond with nature in a whole new way. Wide tyres, new options for the transmission, smart carrying solutions and the perfect accessories make the foundation.

4

model variants

2

finish options (silver/black)

11.6

kg
total weight (Di2 variant)
To create independence in permanent dependence comes a gravel line from Wilhelm, which makes self-sufficient riding on a wide variety of surfaces a head-out moment. Wilhelm Gravel allows you to exceed the well-known urban environment and start out to bond with nature in a whole new way. Wide tyres, new options for the transmission, smart carrying solutions and the perfect accessories make the foundation.
apricot (on request)
moss green (on request)
alu pure
garnet red
midnight blue
cream white

Versatile features

Two different frame designs allow a wide range of transmission options: Pinion Smart.Shift, Pinion C-Line 12-speed, Rohloff 14-speed and Shimano Alfine Di2 11-speed. Features such as colour, mudguards, luggage rack, fork and lighting setup can also be customised. The low bottom bracket and long head tube and top tube result in a sporty seating position that is also suitable for touring. To maintain the purist design, all cables are routed internally.

Versatile features - Two different frame designs allow a wide range of transmission options: Pinion Smart.Shift, Pinion C-Line 12-speed, Rohloff 14-speed and Shimano Alfine Di2 11-speed. Features such as colour, mudguards, luggage rack, fork and lighting setup can also be customised. The low bottom bracket and long head tube and top tube result in a sporty seating position that is also suitable for touring. To maintain the purist design, all cables are routed internally.

Gates Carbon Drive

Since day one, Schindelhauer has been using the superior belt drive from Gates, which consists of embedded carbon fibres. All bikes are specially designed for the belt drive in order to take advantage of all the benefits.

Zero maintenance

Oiling, greasing and rusting are a thing of the past.

Highly efficient

With a higher wattage, the efficiency is higher compared to the chain.

Long life span

The Gates Carbon Drive lasts about 3-4 times longer than a chain.

Stay clean

Due to the lack of oil, it keeps your trousers away from dirt.

Super quiet

No chain - No more chain running noises.

Lightweight

The Gates Carbon Drive weighs 20% less than a classic chain.

Pinion Smart.Shift

With Pinion Smart.Shift, you can experience the transmission technology developed by ex-Porsche engineers in a completely new way. Reliable and maintenance-free shifting now works electronically, making it even smoother and faster - both while riding and when stationary. The integrated buttons on the TRP brake/shift lever unit are super easy to reach.

The 12-speed transmission of the C-Line is one of the smallest and at the same time most powerful central gearboxes. With an overall gear ratio of 600 %, it is perfectly for urban and gravel terrain.
12-speed Pinion C-Line

The 12-speed transmission of the C-Line is one of the smallest and at the same time most powerful central gearboxes. With an overall gear ratio of 600 %, it is perfectly for urban and gravel terrain.

Noch einfacher und bequemer: Blitzschnelles Schalten in 0,2 Sekunden mit nur einem leichten Tastendruck.
Pinion Smart.Shift

Noch einfacher und bequemer: Blitzschnelles Schalten in 0,2 Sekunden mit nur einem leichten Tastendruck.

The TRP brake/shift lever unit increases safety and ergonomics by enabling effortless shifting and braking on the dropbar handlebars.
TRP - HYWIRE

The TRP brake/shift lever unit increases safety and ergonomics by enabling effortless shifting and braking on the dropbar handlebars.

Pinion + Cinq Shift:R

Mechanical alternative to Pinion Smart.Shift: The Cinq Shift:R solution specially developed for Pinion C-Line enables the combination of drop bar with brake levers and Pinion gearbox. Thanks to the central positioning in the frame, a low centre of gravity is ensured with optimum weight distribution and special riding dynamics - even with luggage.

The 12-speed transmission of the C-Line is one of the smallest and at the same time most powerful central gearboxes. With an overall gear ratio of 600 %, it is perfectly for urban and gravel terrain.
12-speed Pinion C-Line

The 12-speed transmission of the C-Line is one of the smallest and at the same time most powerful central gearboxes. With an overall gear ratio of 600 %, it is perfectly for urban and gravel terrain.

Developed in direct collaboration with Pinion, the Cinq solution enables effortless gear changes on the dropbar without the classic twist shifter.
Cinq Shift:R

Developed in direct collaboration with Pinion, the Cinq solution enables effortless gear changes on the dropbar without the classic twist shifter.

Relaxed shifting and braking with the matching Shift:R Road shift lever.
Cinq Shift:R Road Shifter

Relaxed shifting and braking with the matching Shift:R Road shift lever.

Rohloff Speedhub

Made in Germany, the Rohloff Speedhub 14-speed internal geared hub is an engineering marvel. Developed for both pros and performance-oriented hobby cyclists, the high-performance gearbox offers complete reliability even in the toughest conditions.

The overall gear range of 526% is made up of 14 regularly spaced gears, so you can easily find the right gear for the terrain you are exploring.
14-speed-hub

The overall gear range of 526% is made up of 14 regularly spaced gears, so you can easily find the right gear for the terrain you are exploring.

The Rohbox makes it possible to operate a Rohloff Speedhub 14-speed gear hub with dropbar shifters instead of the original twist shifter.
GEBLA Rohbox

The Rohbox makes it possible to operate a Rohloff Speedhub 14-speed gear hub with dropbar shifters instead of the original twist shifter.

The Shimano GRX sets itself apart from the rest of the component world with its gravel-specific ergonomics, optimised gradation options, high durability and a quiet and stable drivetrain.
Shimano GRX

The Shimano GRX sets itself apart from the rest of the component world with its gravel-specific ergonomics, optimised gradation options, high durability and a quiet and stable drivetrain.

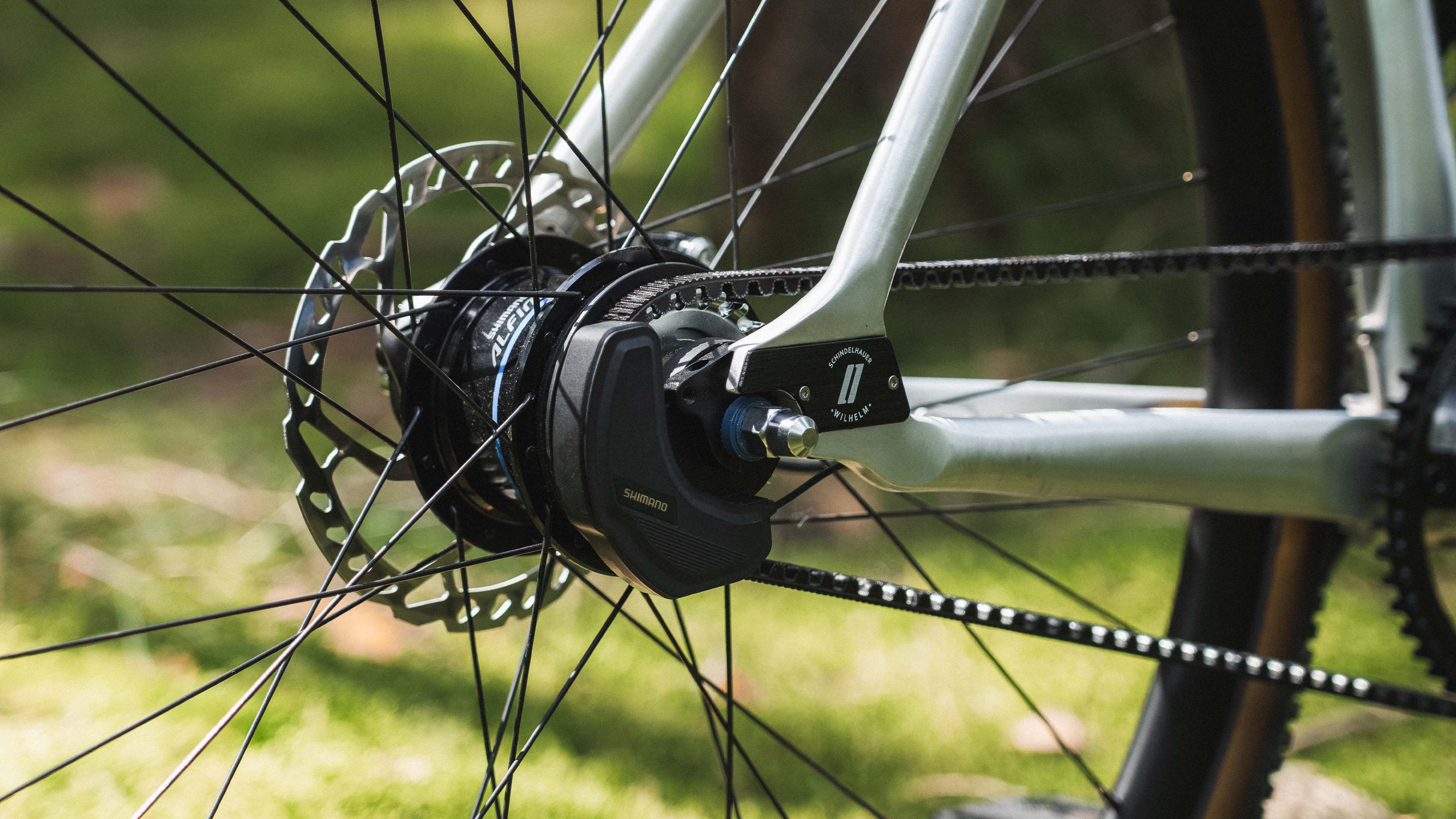

Shimano Alfine Di2

Precise, fast and convenient – Wilhelm Gravel can also be equipped with the electronic variant of the popular Shimano Alfine hub gears. Shifting is much more reliable and faster, while durability and resistance are significantly higher than with a mechanical system.

The well-proven Shimano Alfine 11-speed hub works quietly, reliably and quickly. With a spread of 409 %, it offers enough leeway for extended tours with climbs and tailwind passages.
11-speed-hub

The well-proven Shimano Alfine 11-speed hub works quietly, reliably and quickly. With a spread of 409 %, it offers enough leeway for extended tours with climbs and tailwind passages.

All in one: Display, charging port and wireless communication interface.
Digital Integrated Intelligence

All in one: Display, charging port and wireless communication interface.

The Shimano GRX sets itself apart from the rest of the component world with its gravel-specific ergonomics, optimised gradation options, high durability and a quiet and stable drivetrain.
Shimano GRX

The Shimano GRX sets itself apart from the rest of the component world with its gravel-specific ergonomics, optimised gradation options, high durability and a quiet and stable drivetrain.

More Highlights

Optional front rack

ALLYGN

Optional front rack
Optional carbon fork

SEIDO

Optional carbon fork
Components finish

polished silver or black

Components finish
Gravel tires

Continental Terra Trail

Gravel tires

The frame sizes listed are only a guide. Finding the right sized frame for you depends on things like your height, personal preferences and riding style. We always recommend taking a test ride at one of our dealers.,

Frame Size
Body Height
Inseam Length
XS (50)151-16073-77
S (53)161-17078-82
M (56)171-17983-86
L (59)180-18887-91
XL (62)189-19892-95
